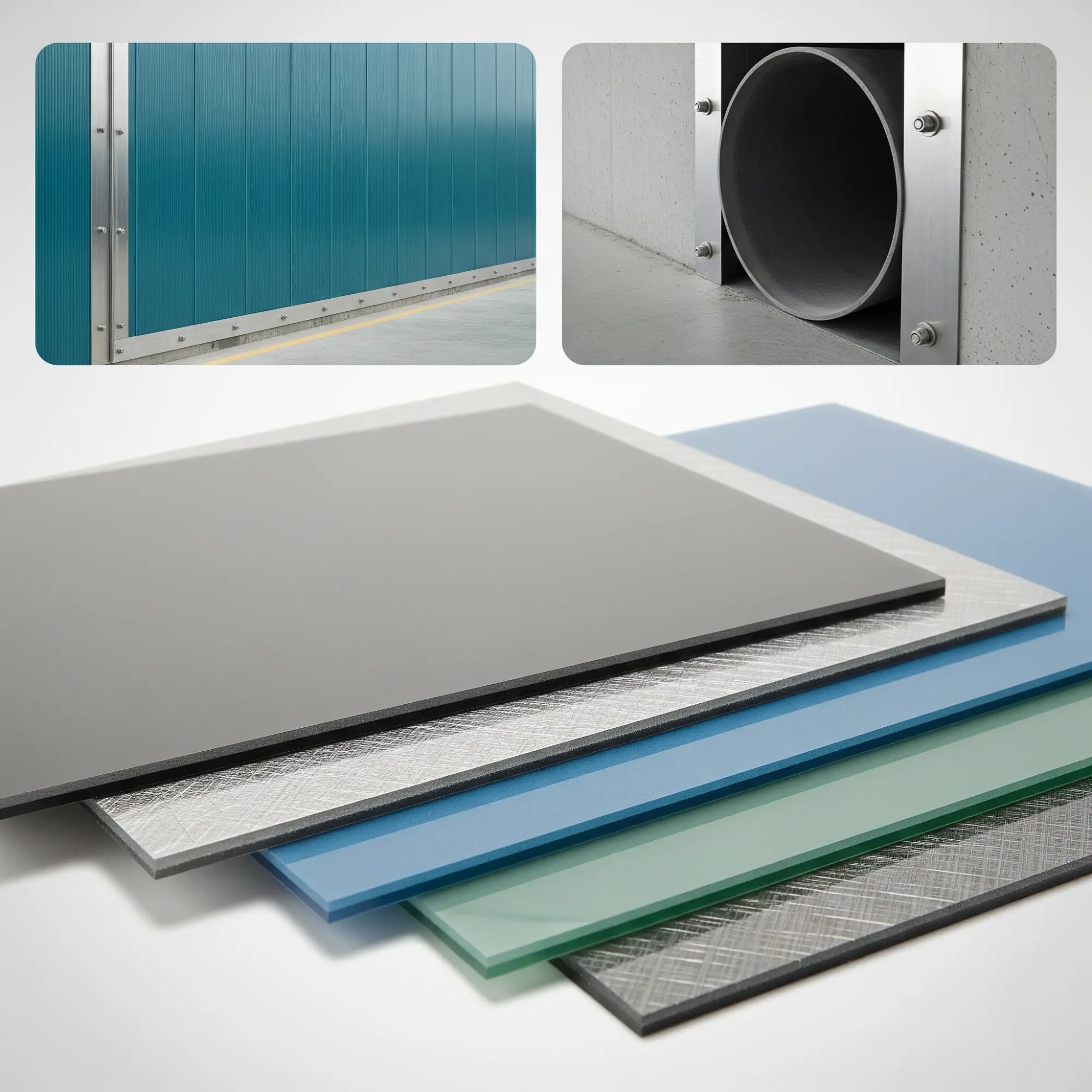

PP Glass Lined Sheets

PP Glass Lined Sheets

PP Glass Lined Sheets (PPGL Sheets) are advanced composite sheets combining the chemical resistance of polypropylene with the added strength of glass fiber lining. These sheets offer high mechanical strength, thermal stability, and exceptional chemical resistance, making them ideal for industrial linings, tanks, chemical plants, and fabrication.

At Prime Terratech, we manufacture premium-quality PPGL sheets using advanced co-extrusion and reinforcement technology. The integration of glass fiber enhances rigidity and dimensional stability, while the PP surface ensures corrosion resistance against a wide range of chemicals.

Our PP Glass Lined Sheets are widely used in industries like electroplating, pharmaceuticals, wastewater treatment, and chemical processing, where durability and protection are paramount. With customizable thickness, width, and surface finishes, we deliver robust solutions for industrial demands.

Details
Features
Benefits
Specification
Application
FAQ's

Product Details

PP Glass Lined Sheets (PPGL Sheets) are engineered thermoplastic composites that combine the versatility of polypropylene with the added mechanical strength of glass fiber reinforcement. These sheets are designed for demanding environments that require superior chemical resistance, high impact strength, and dimensional stability under load.

Manufactured by Prime Terratech, these sheets are produced using top-grade PP resin and woven glass mat layers, bonded through thermal and mechanical processes. The result is a durable, reinforced plastic sheet suitable for fabrication, cladding, lining, and structural applications.

PPGL sheets provide excellent performance in chemical tanks, pickling lines, wet scrubbers, plating barrels, and water treatment plants. They’re lightweight, easy to fabricate (weld, bend, cut), and resist acids, alkalis, and solvents.

Why Choose Our PP Glass Lined Sheets:

Superior strength and long-term durability
Manufactured with woven glass reinforcement
Chemical- and corrosion-resistant surface
Non-toxic and food-grade options available
Trusted PPGL Sheets Manufacturer in India

Whether for industrial tanks, exhaust ducts, or process vessels, Prime Terratech’s PP Glass Lined Sheets deliver reliable performance in the harshest environments.

Features

Reinforced Structure – Contains woven glass mat for added tensile strength and rigidity.
High Chemical Resistance – Resistant to a wide range of corrosive chemicals, including acids, alkalis, and organic solvents.
Thermal Stability – Maintains structural integrity under moderate to high temperatures.
Excellent Weldability – Can be thermally welded or fabricated into complex components without delamination.
Smooth Surface Finish – Easy to clean and ideal for hygienic applications in food or pharma environments.
UV and Weather Resistant – Suitable for both indoor and outdoor industrial use.
Custom Thickness and Sizes – Available in 3 mm to 20 mm thickness and custom dimensions.
Low Moisture Absorption – Maintains performance even in humid or submerged conditions.

Benefits

Extended Lifespan – Reinforced with glass fiber for long-term durability in harsh settings.
Improved Structural Support – Ideal for applications requiring stiff, form-retaining material under pressure.
Reduced Maintenance Costs – Corrosion resistance minimizes wear, leaks, and need for replacement.
Enhanced Safety – Non-toxic, chemically inert, and compliant with industrial safety standards.
Lightweight for Easy Handling – Easier to transport and install compared to metal or FRP alternatives.
Versatile in Application – Can be used for fabrication, cladding, and lining in multiple industries.
Thermally Stable – Withstands temperature fluctuations and thermal cycling in processing environments.
Environmentally Friendly – 100% recyclable and available in eco-friendly formulations.

Specification

Parameter	Specification
Material	Polypropylene with Glass Fiber Lining
Thickness Range	3 mm to 20 mm
Width	Up to 1500 mm
Length	Standard 2440 mm / Custom sizes on request
Surface Finish	Smooth or textured
Color Options	Natural, Grey, White (others on request)
Temperature Range	-5°C to 100°C (continuous use)
UV Resistance	Optional UV-stabilized grades available

Application

Chemical storage tank lining
Electroplating process equipment
Scrubber and exhaust duct cladding
Pickling tanks and acid processing lines
Wastewater treatment tanks
Process plant fabrication and ductwork
Food and pharma equipment lining

FAQ's

Q1: What is a PP Glass Lined Sheet?
A: It is a polypropylene sheet reinforced with woven glass fiber for added strength and chemical resistance.

Q2: Where are PPGL sheets typically used?
A: Commonly used in chemical plants, wastewater treatment, and electroplating facilities.

Q3: Can PPGL sheets be fabricated or welded?
A: Yes, they can be thermally welded and formed into custom components.

Q4: Are these sheets resistant to strong acids and bases?
A: Absolutely. They offer excellent resistance to corrosive substances across a wide pH range.

Q5: Are you a reliable PPGL Sheets Manufacturer?
A: Yes, Prime Terratech is a trusted PP Glass Lined Sheets manufacturer, delivering consistent quality and customization across India and global markets.
